CHTMH 050-10

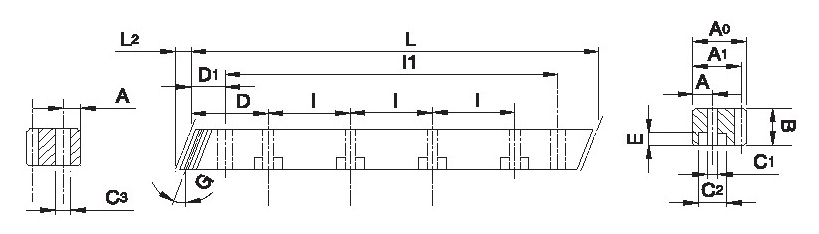

Dimensions
Brand: hqm
Model: CHTMH 050-10
Tooth No: 60
Module: 5
Hole No: 8
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Dimensions
C3
11.7
I1
925.0
D1
37.5
E
13
C2
20
C1
14
A
12
Hole No
8
I
125
D
62.5
A1
34
AD
39
B
49
Tooth No
60
L2
17.4
L
1000.00
Module
5
