CHTGH 060-05

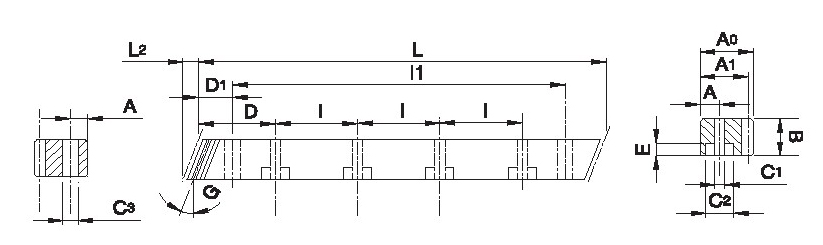

Dimensions
Brand: hqm
Model: CHTGH 060-05
Tooth No: 25
Module: 6
Hole No: 4
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Dimensions
C3
15.7
I1
425.0
D1
37.5
E
17
C2
26
C1
18
A
16
Hole No
4
I
125
D
62.50
A1
43
AD
49
B
59
Tooth No
25
L2
20.9
L
500.00
Module
6
