MGN12C
Dimensions Moments ...
Read more
Brand: hqm
Model: MGN12C
Width: 12
Screw used: M3
Length: 34.7
Suitable for all types of industrial devices
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Dimensions

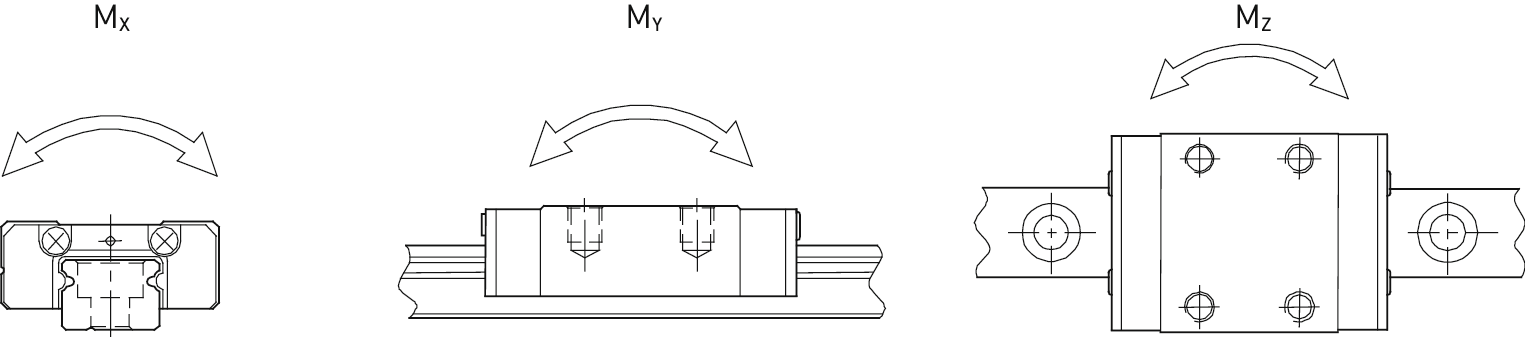

Moments
Total height [mm]
13
Block width [mm]
27
Block length [mm]
34.7
Dynamic load rating [N]
2.840
Static load rating [N]
3.920
block type
N
Size
12
Load type
C
H1
3
N
7.5
B1
3.5
C
15
M
M3
H2
2.5
Mass
0.03
Gn
Ø2
