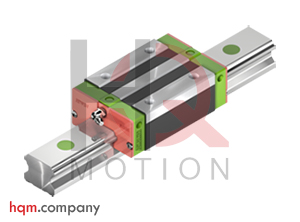

EGH20CA
Dimensions Moments ...
Read more
Brand: hqm
Model: EGH20CA
Width: 20
Screw used: M5
Length: 69.1
Suitable for all types of industrial devices
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos

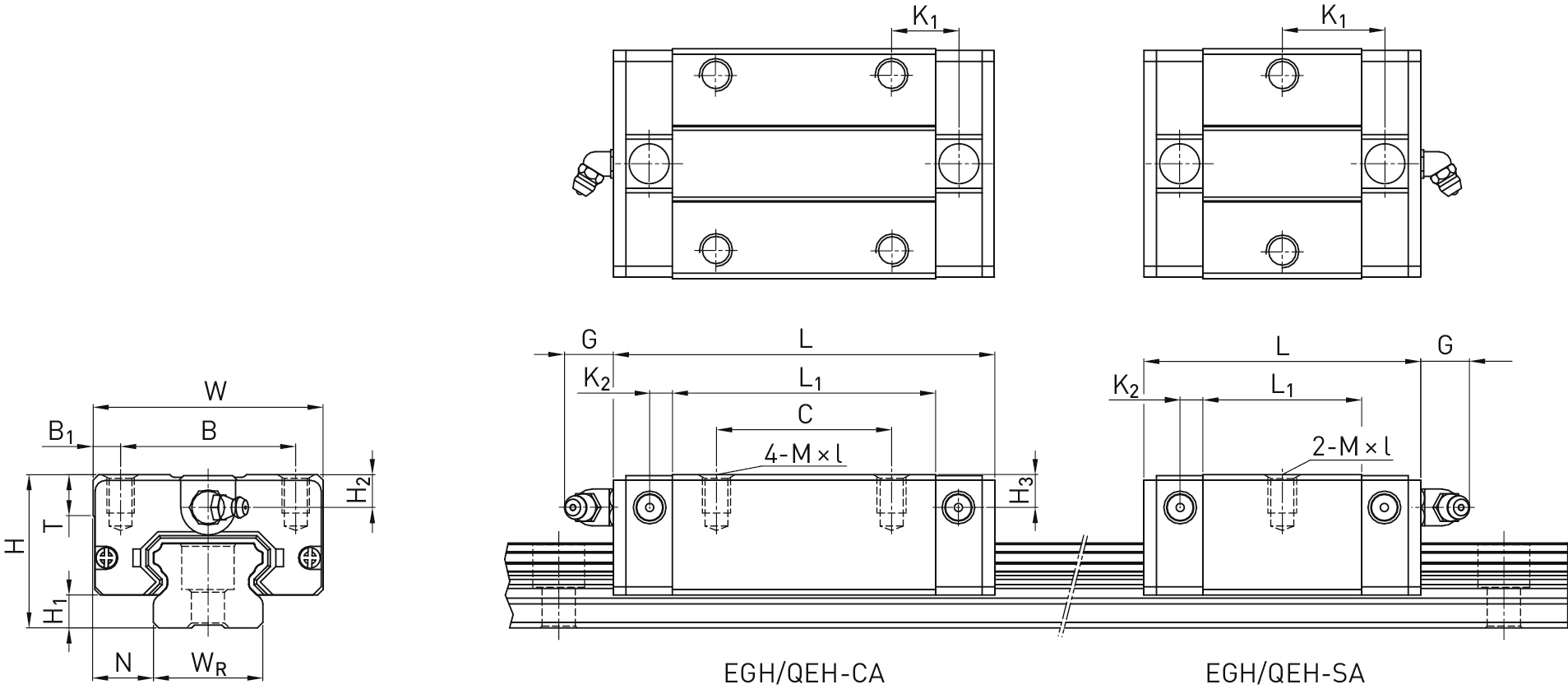

Dimensions
Moments
Total height [mm]
28
Block width [mm]
42
Block length [mm]
69.1
Dynamic load rating [N]
10.310
Static load rating [N]
21.130
block type
H
Size
20
Load type
C
H1
6
N
11
B
32
B1
5
K1
12.3
K2
4.15
G
12
M
M5
l
7
T
7.5
H2
6
H3
6
Mass
0.24
