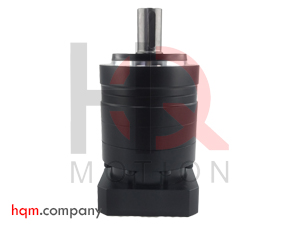

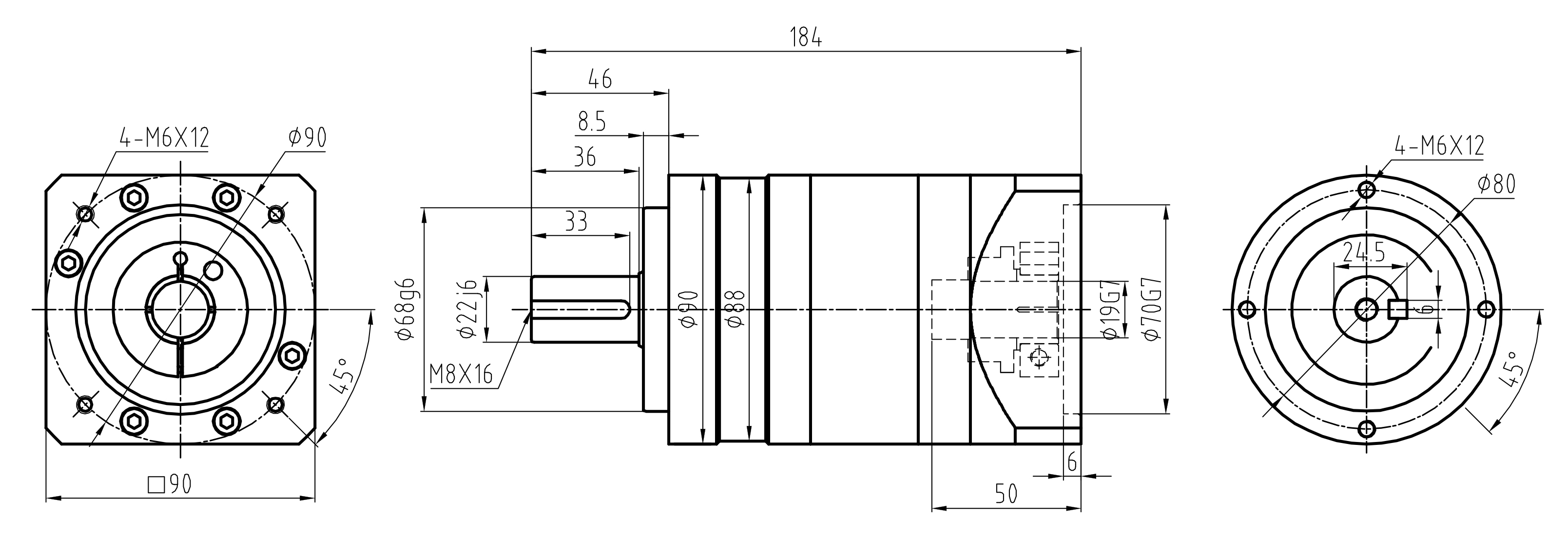

SE90-100-19
Model: SE90-100-19
Brand: hqm
Size: 90
Ratio: 1 to 100
Input shaft: 19
Output shaft: 22
Flange: Round
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Ratio
1 to 100
Input Shaft
19
Output Shaft
22
Flange
Round Flange
