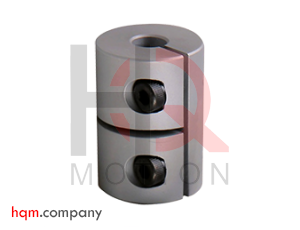

D-16
Dimensions
Brand: hqm
Code: D-16
Outer Diameter: 16
Height: 24
Shaft: M2.5
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Dimensions
N.m
1.0
M
M2.5
L2
5.7
L1
11.5
L
24
D
16
d2
6
d1
5
