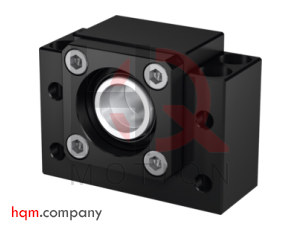

BK 17

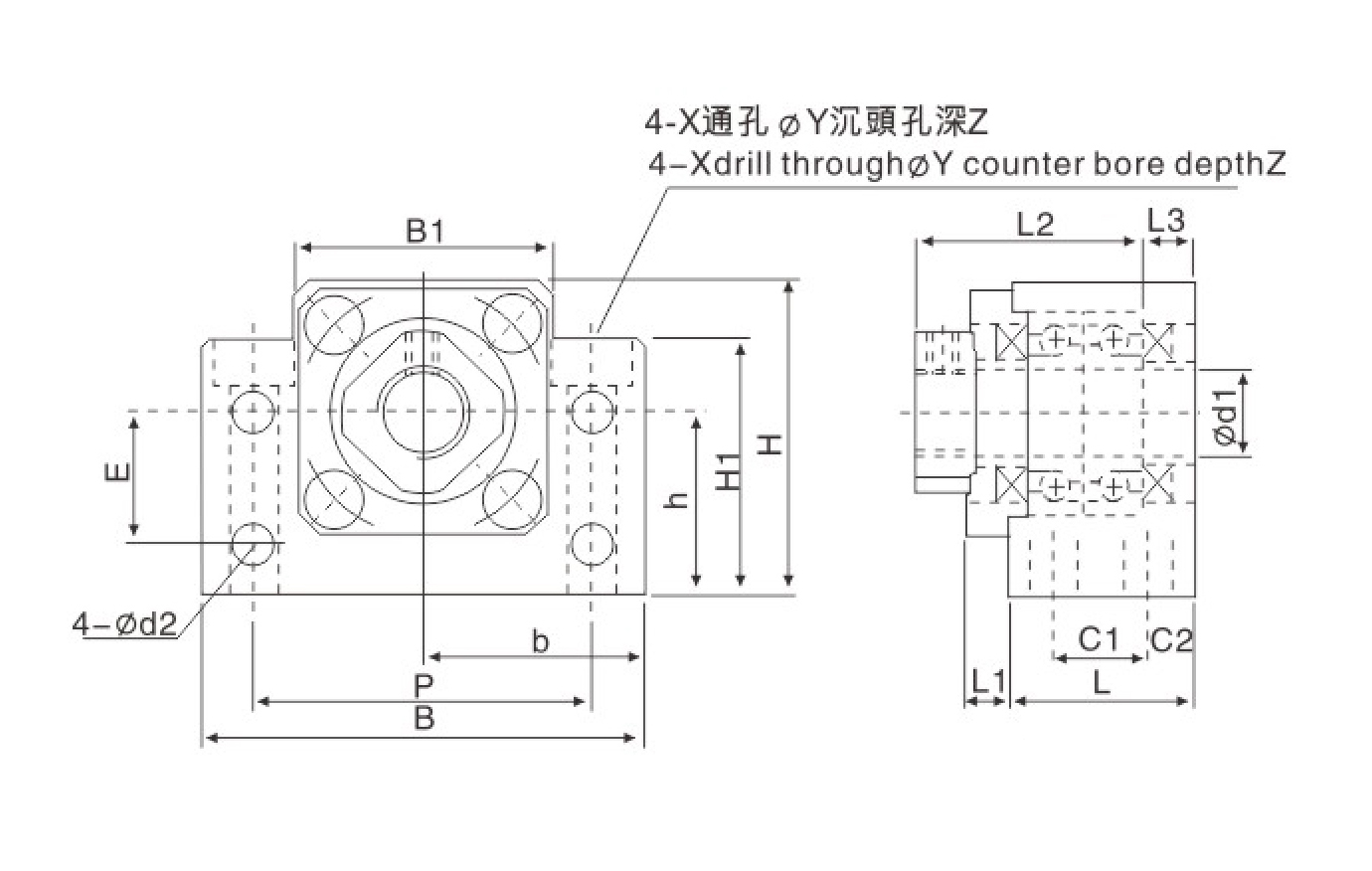

Dimensions
Brand: hqm
Model: BK 17
Diameter: 17
Suitable for ballscrew and leadscrew
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos
Dimensions
d1
17
L
35
B
86
H
64
b +-0.02
43
h +-0.02
39
B1
50
H1
55
E
28
P
68
d2
6.6
X
9
Y
14
z
8.5
L1
9
L2
44
L3
7
C1
19
C2
8
