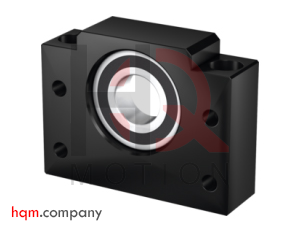

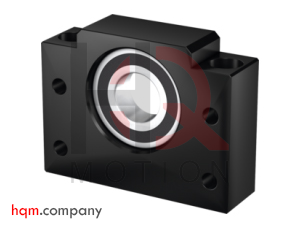

BF 25
Dimensions
Brand: hqm
Model: BF 25
Diameter: 25
Suitable for ballscrew and leadscrew
Buy Online
Send a Message
The add to cart button will appear once you select the values above
Technical Details
Details
Accessories
Downloads
Videos

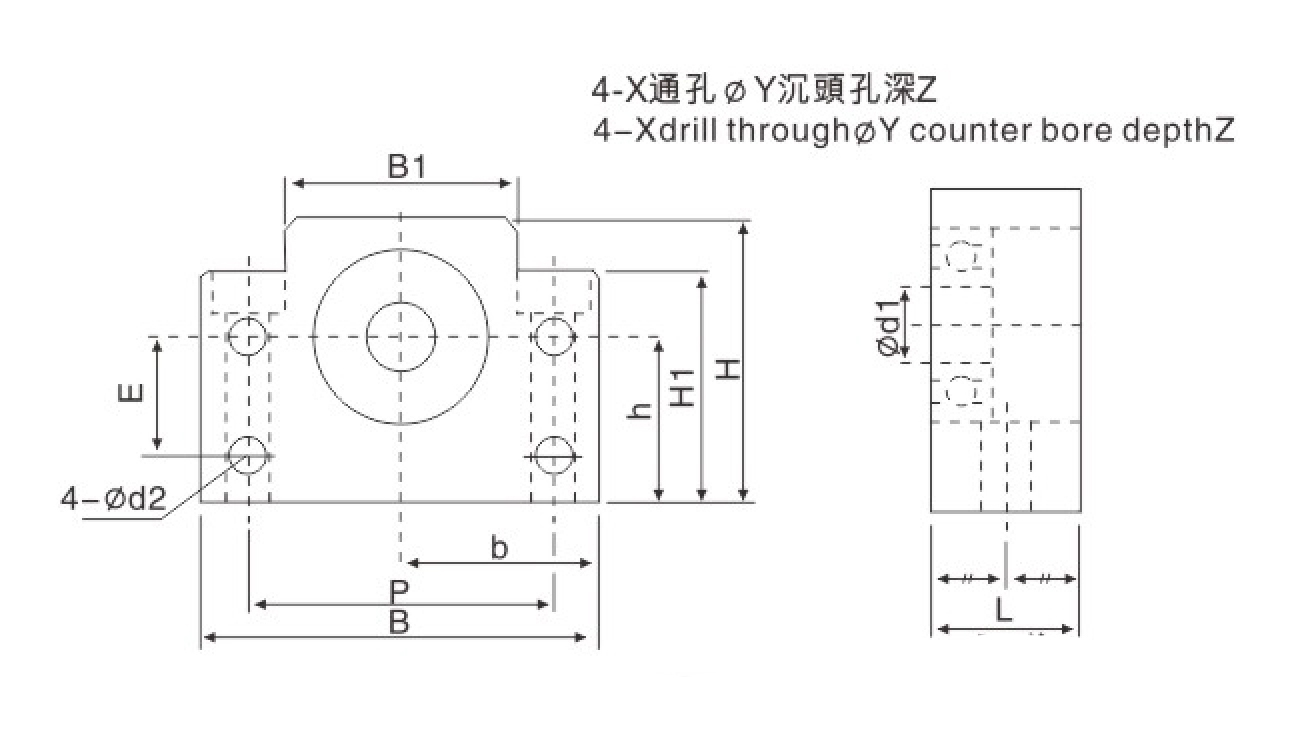

Dimensions
d1
25
L
30
B
106
H
80
b +-0.02
53
h +-0.02
48
B1
64
H1
70
E
33
P
85
d2
9
X
11
Y
17.5
z
11
